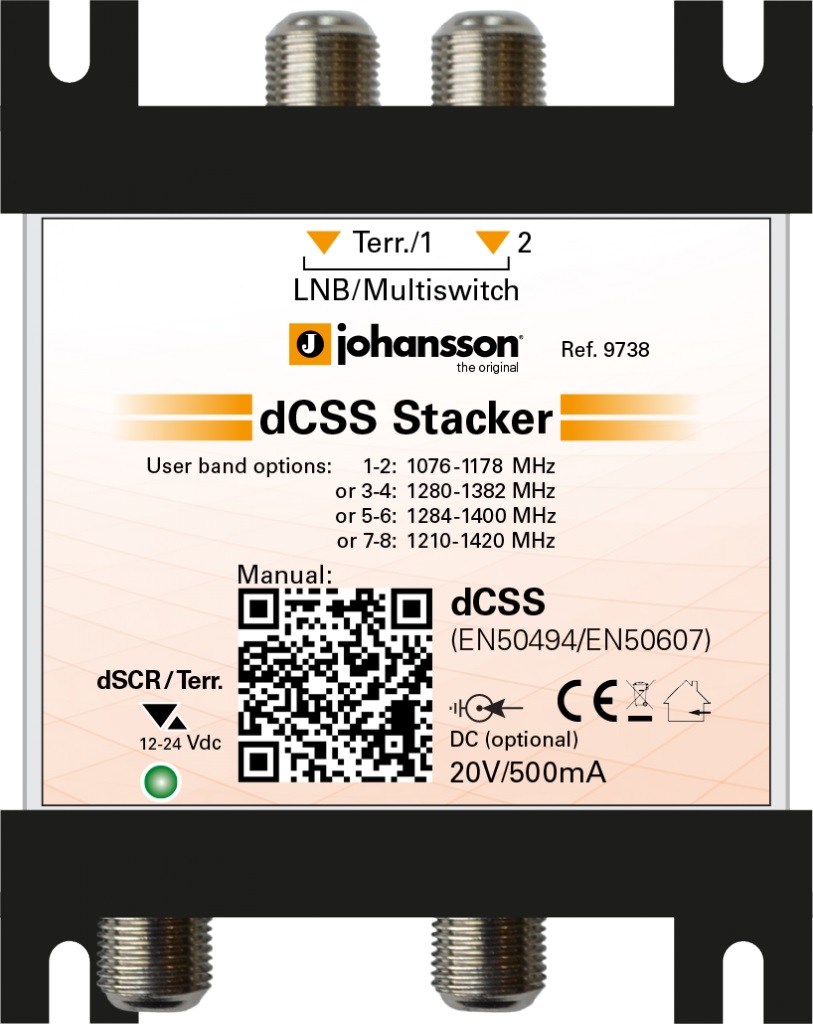

2 SAT + 1 TERR входы, 1 выход (2 абонента)

nputs

-

2 ports Satellite, combined with Terrestrial on port 1

Input Frequency

MHz

Userbands 1-2: 1076 - 1178 MHz
or Userbands 3-4: 1280 - 1382 MHz
or Userbands 5-6: 1284 - 1400 MHz
or Userbands 7-8: 1210 - 1420 MHz

STB Output Frequency

MHz

5 – 862 / 950 – 2150

dCSS/dSCR outputs

-

1 SCR

dCSS/dSCR output connector

Ohm

75   F type (Female)

dCSS/dSCR UBs

-

2 on SCR output

dCSS/dSCR output level

dBm

-23

Satellite input power level

dBm

-45 to -15

Return loss

dB

>=8 (Typ 12)

Tap loss SCR

dB

Not applicable, AGC (automatic Gain control)

Terrestrial/Cable loss

dB

-7 typical

Band and polarity selection

-

DiSEqC 1.0 (unidirectional)

DiSEqC 2.0 (bidirectional)

Standard EN 50494 (SCD)

Standard EN 50607 (SCD 2)

Max DC current consumption

SCR port

W

<4,0

DC power pass from STB to input ports

V

13/18/22kHz 100mA max per port

From DC power port to input ports

V

13/18/22kHz 500mA max combined

Power supply

-

From STB or power inserter

Power (2460 available separately)

A

500mA max, 20V

Dimensions

mm

90x85x40
