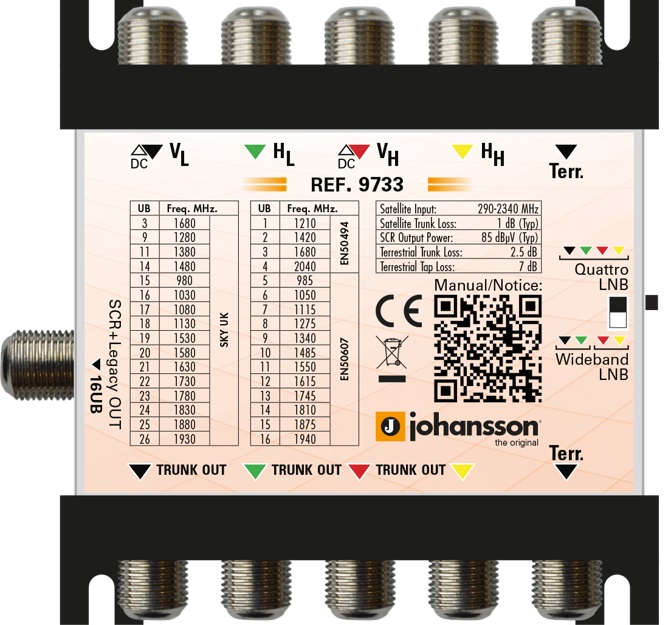

9733
4 SAT + 1 TERR входа, 4 SAT +1 TERR транзитных выхода, 1 выход RF на 16 пользователей (User Bands)
| runk inputs | - | 4 + 1 |
| Trunk outputs | - | 4 + 1 |
| Trunk Frequency | MHz | 5-862 / 290-2340 |
| STB Output Frequency | MHz | 5-862 / 950-2150 |
| Trunk loss | dB | Typ. 1 |
| dCSS/dSCR outputs | - | 1 |
| dCSS/dSCR output connector | - | 75 Ohm F type (Female) |
| dCSS/dSCR UBs | - | 16 |
| dCSS/dSCR output level | dBµV | 85 |
| Return loss | dB | >=8 dB (Typ 12) |
| Tap loss | - | Not applicable, AGC (automatic gain control) |
| Terrestrial/Cable loss | dB | -7 |
| Band and polarity selection | - | Universal LNB voltage & Tone DiSEqC 1.0 (unidirectional) DiSEqC 2.0 (bidirectional) Standard EN 50494 (SCD) Standard EN 50607 (SCD 2) SKY UK standard |
| Max DC current consumption | - | < 320mA @ 13 Volt |
| Power supply | - | From STB, power inserter or trunk (VL&VH) |
| Power (2460+9669 available separately) | - | 3A max, 20V |
| Dimensions | mm | 92x90x40 mm |
